Kohler

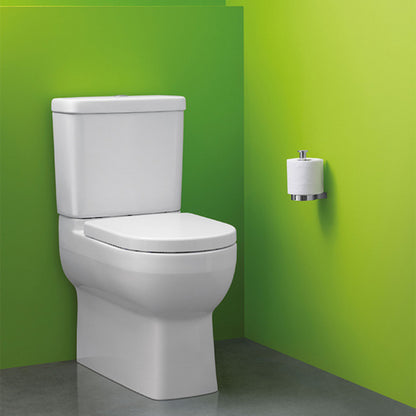

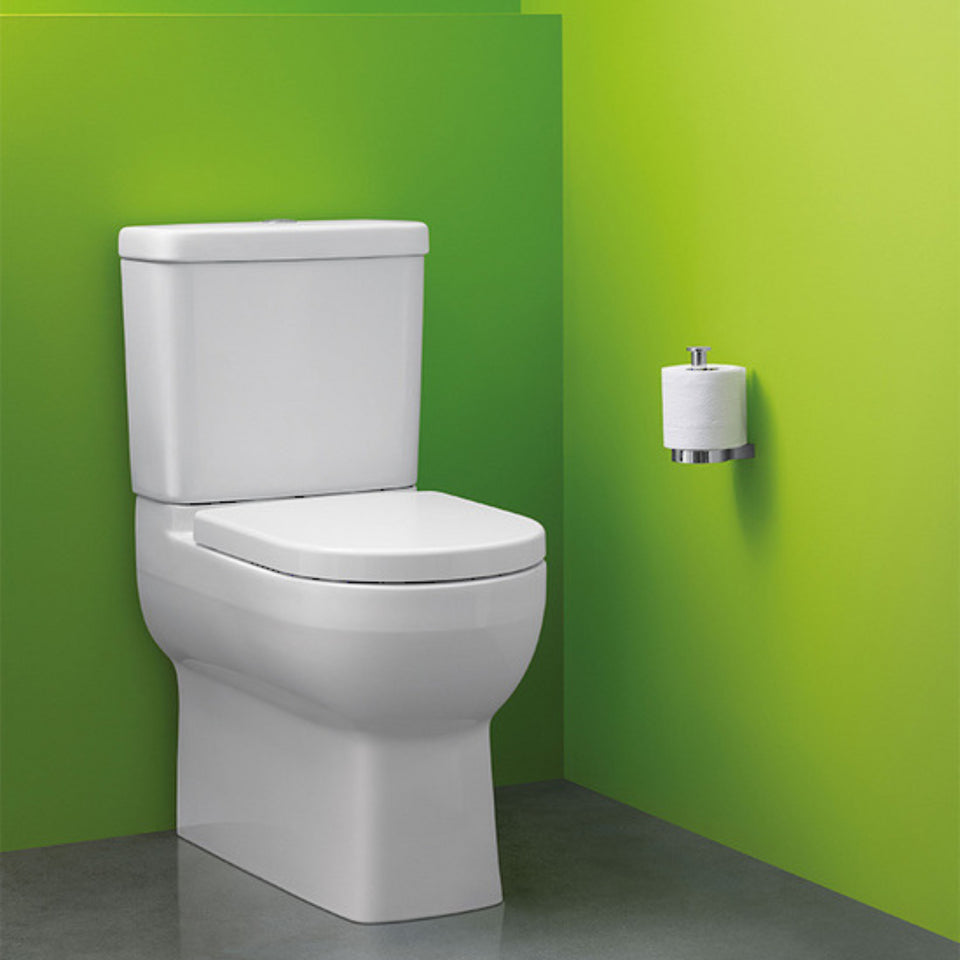

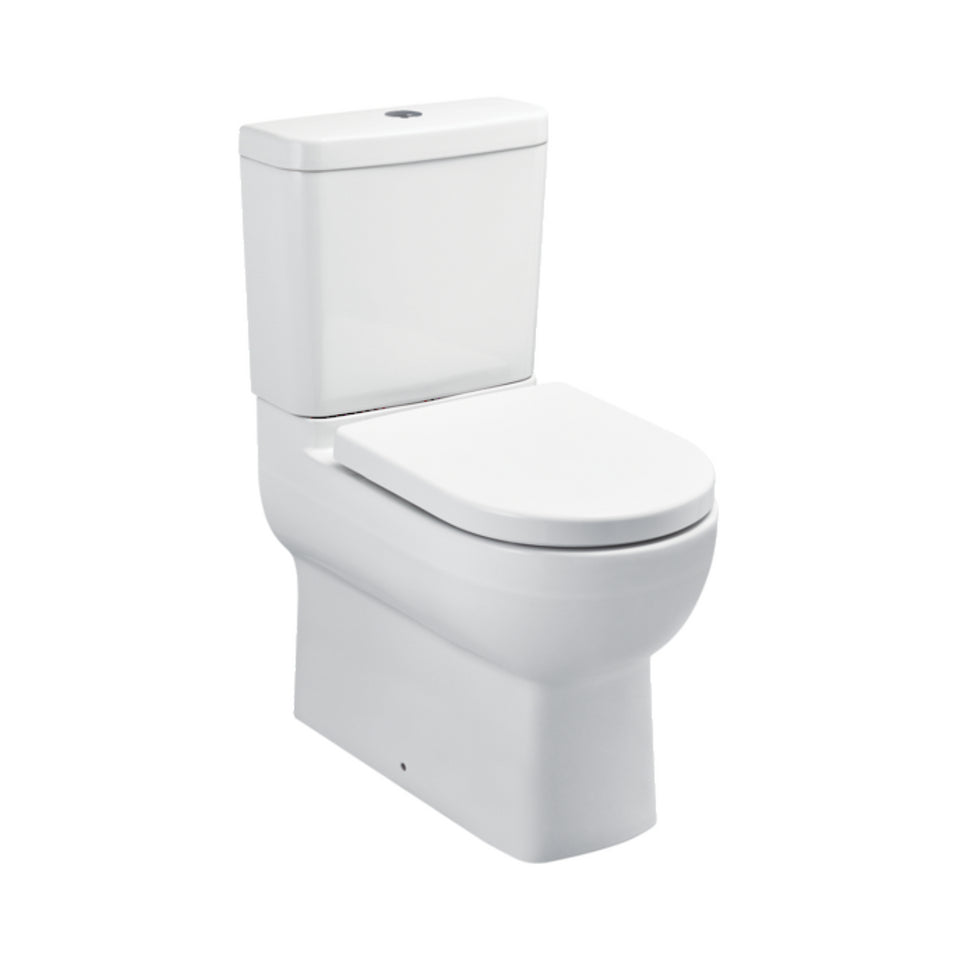

Reach II Back to Wall Toilet Suite - Rear Entry or Side Inlet
Reach II Back to Wall Toilet Suite - Rear Entry or Side Inlet
SKU:77303A-0
The next generation space saving Reach, with rimless technology.
The contemporary, flared straight skirt and HygieneMAX rimless pan make it both good looking and easy to clean. It is available in two comfortable seat types - wrap over and slim, and the small projection makes it an ideal choice when space is limited.
Product Features

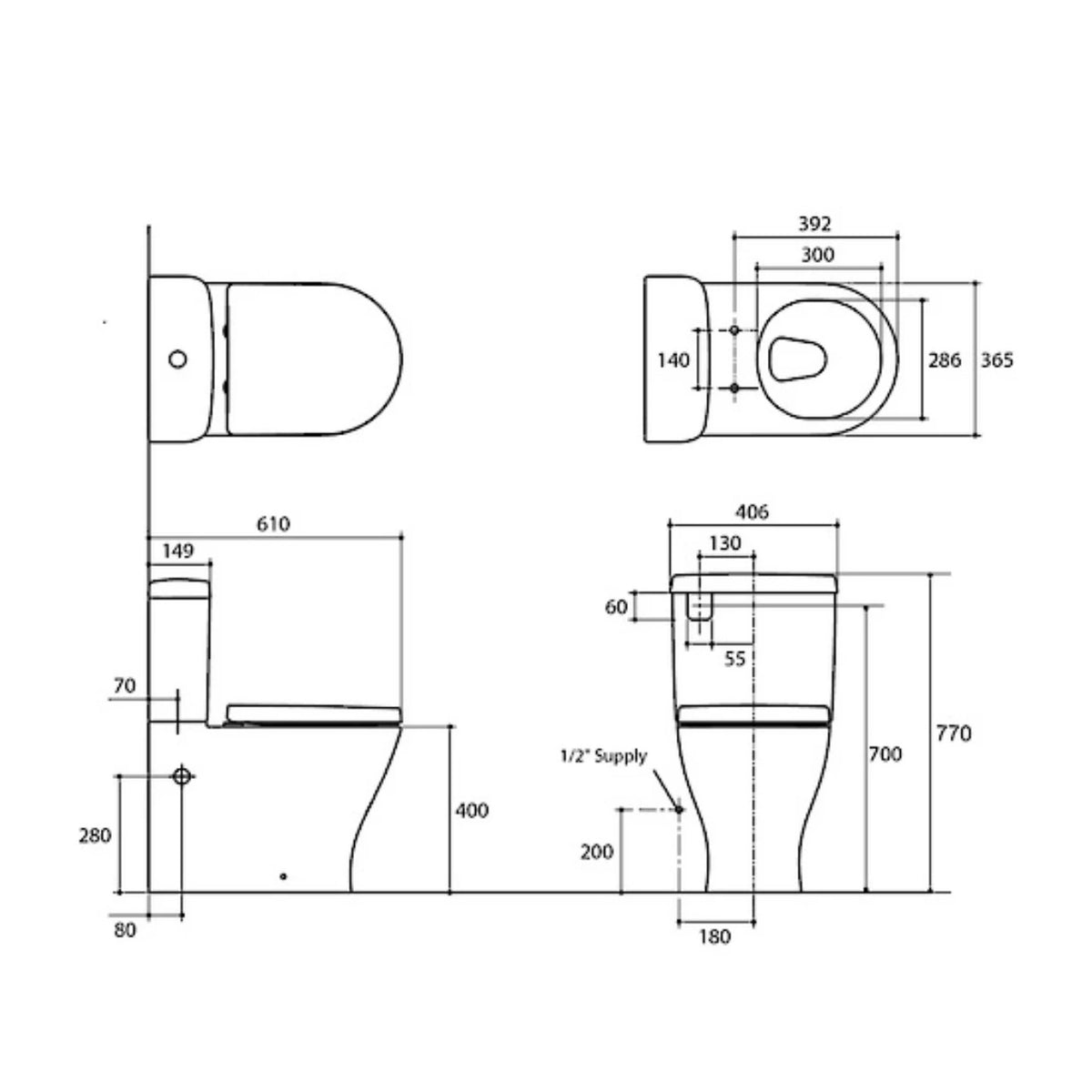

- 610mm projection - ideal for smaller spaces
- Quiet Close, Quick Release toilet seat
- Two seat options: wrap over and slim
- Rear and side entry toilet suite

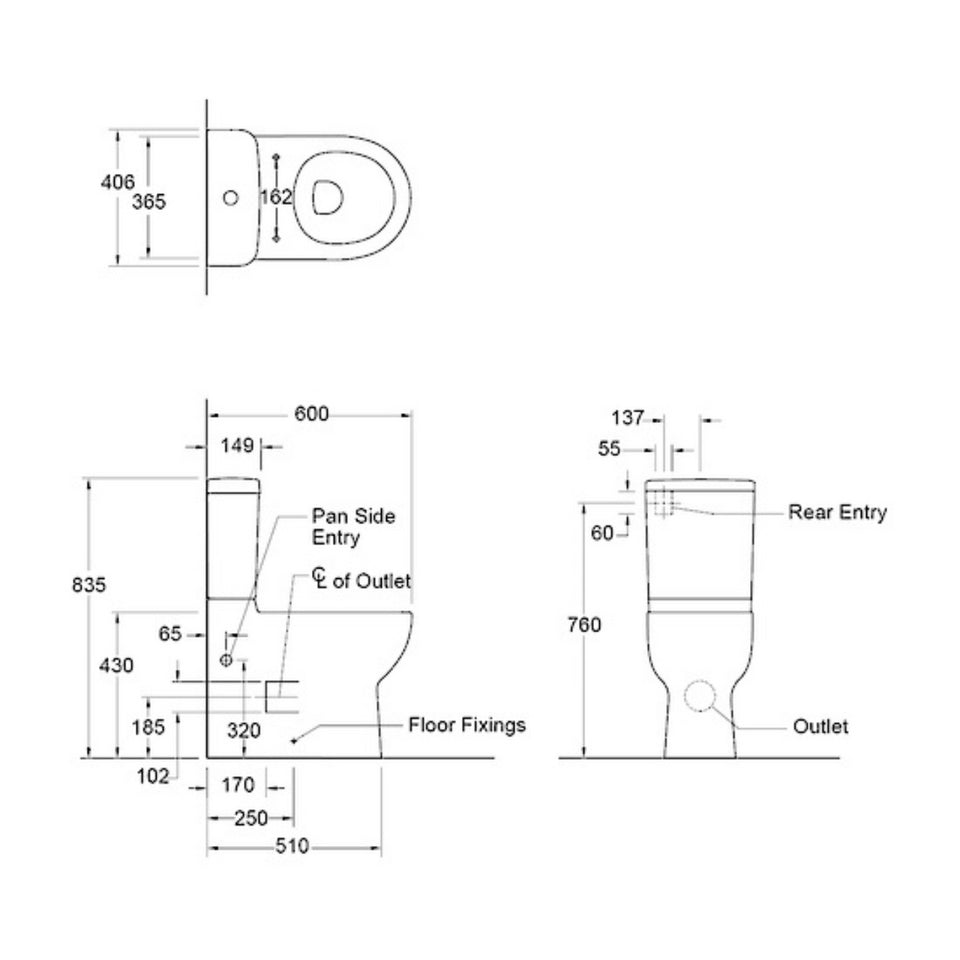

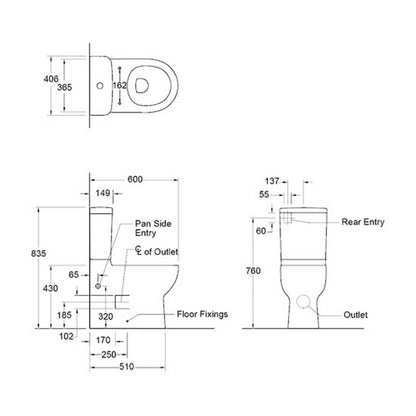

- P-trap set out: 185mm
- S-trap set out: 90-140mm (with vario pan connector 12503A-NA, supplied); 170-230mm (with long adjustable vario pan connector 77837A-NA, not supplied)
- WELS Rating: 4 Star, dual flush 4.5/3.5L
Included Components
- Vario pan connector
- Fill valve
- Bottom inlet plug
- Reach toilet pan
- Reach toilet cistern 4.5/3L
- Reach quiet close, quick release toilet seat
- Fixing bolts and anchors
Technical Information
š Installation Instructions
