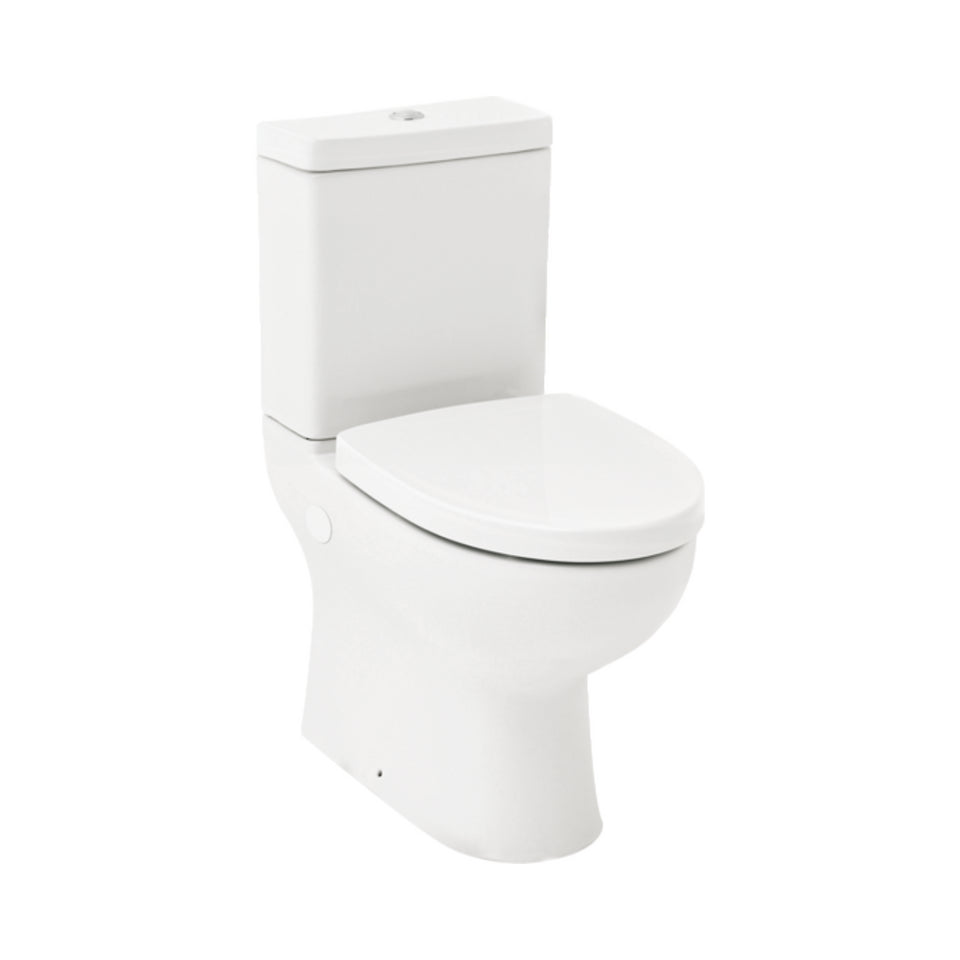

Kohler Parliament Dual Side Entry Toilet Suite (77304A-0)

Designed for versatility, the Kohler Dual includes more features, now including multiple water feed options making it the perfect choice for both new builds and renovations alike.

Product Features

• Dual flush (4.5/3L)
• Water entry: Top left rear entry or right/left pan side entry

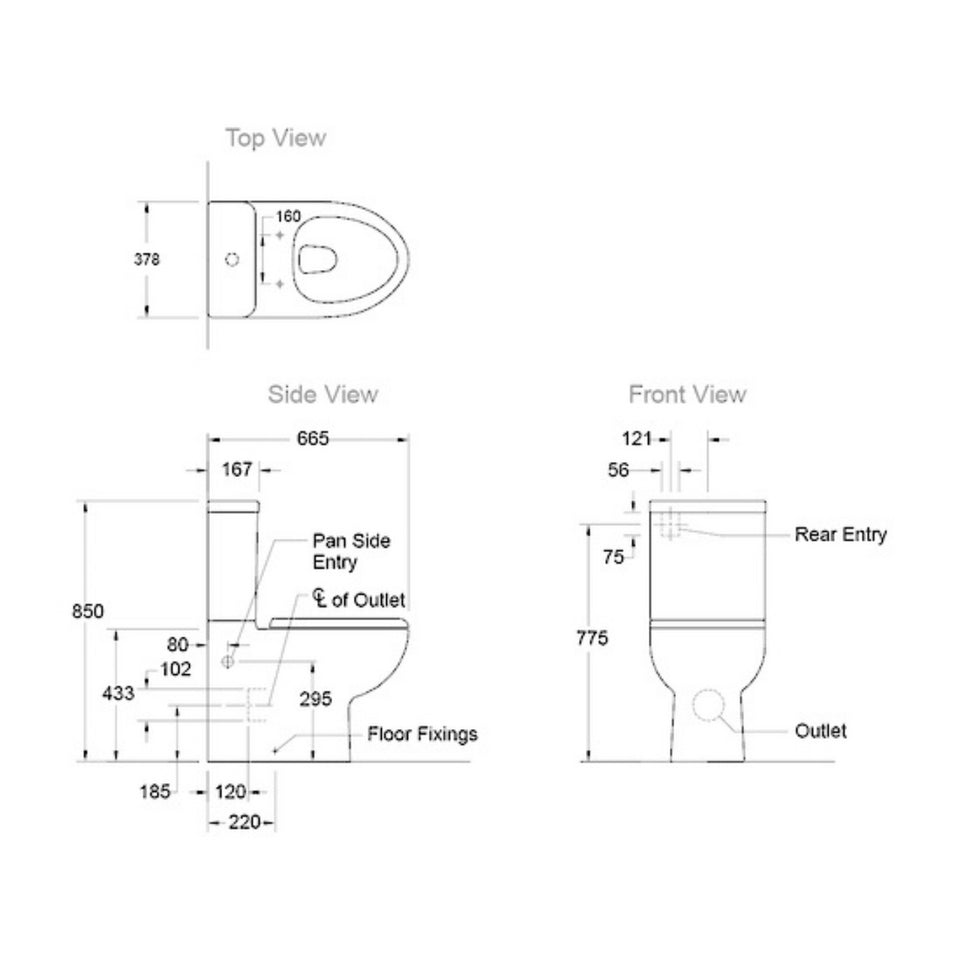

• P-trap set out height: 185mm
• S-trap set out: Standard: 90mm - 140mm (with vario pan connector & 20mm offset pan collar - supplied). Optional: 160mm - 230mm (with long adjustable vario pan connector, 98451A-0 - not supplied)
• Box rim
• Vitreous china

Included Components

• Kohler Dual toilet pan
• Kohler Dual cistern 4.5L/3L
• Kohler Dual quiet close, vertical Quick Release toilet seat
• Vario pan connector
• Offset pan collar (20mm)
• Fill valve for rear entry
• Fill valve for pan side entry (supplied with pan)
• Rear entry water supply hose (pan side entry water supply hose not supplied)
• 2 x caps for pan side entry holes
• 1 x hose ring for pan side entry hole (for use with pan side entry setup only)
• Floor fixing bolts and anchors

Installation Instructions

• Water supply pressure range: 20 psi (137 kPa) to 80 psi (551kPa)
• Can be installed as a P-trap using a straight connector (not supplied) or as an S-trap using the vario connector along with the 20mm offset pan collar (supplied)
• Rear entry water supply hose is supplied. Pan side entry water supply hose is not supplied and must be purchased separately
• The installation of a remotely located inlet shut-off valve (not supplied) is required.
